In this blog, we will get an overview of a plugin with a detailed step-by-step creation of a plugin with an example.
Here, we will create a plugin that will trigger when the Lead is created and will create a follow-up task.
Connect to Dynamic 365 CRM from Console App using Azure Authentication
Why
Plugin?
Plugins
are custom code that attaches to CRM’s built-in event pipeline. This allows
developers to extend the default behavior of CRM so we could design/develop it exactly
as per the organizational needs.
Create a .NET project:
From Visual Studio, create a new
Project. Add Class Library (.net Framework). Click on Next.
Now, give a relevant name for
the project. Click on Create. This will create a new project with a class.
Right-click on the Project. Then
click on Manage NuGet Package. Add the Microsoft.CrmSdk package. Click on
Install.
Add the below Plugin Code:
using System;
using
Microsoft.Xrm.Sdk;
namespace
FollowupTaskPlugin
{
public class Class1 : IPlugin
{
public void
Execute(IServiceProvider serviceProvider)
{
// Obtain the execution context from the service provider.
IPluginExecutionContext context = (IPluginExecutionContext)
serviceProvider.GetService(typeof(IPluginExecutionContext));
if
(context.InputParameters.Contains("Target") && context.InputParameters["Target"]is Entity) {
// Obtain the target entity from the
input parameters.
Entity entity = (Entity)context.InputParameters["Target"];
try
{
// Create a task activity to follow up with the account customer
in 7 days
Entity followup = new Entity("task");
followup["subject"] = "Send
e-mail to the new User";
followup["description"] ="Follow
up with the User";
followup["scheduledstart"] = DateTime.Now;
followup["scheduledend"] = DateTime.Now.AddDays(2);
followup["category"] = context.PrimaryEntityName;
if (context.OutputParameters.Contains("id"))
{
Guid
regardingobjectid = new Guid(context.OutputParameters["id"].ToString());
string regardingobjectidType
= "lead";
followup["regardingobjectid"] =
new
EntityReference(regardingobjectidType, regardingobjectid);
}
IOrganizationServiceFactory serviceFactory =
(IOrganizationServiceFactory)serviceProvider.GetService
(typeof(IOrganizationServiceFactory));
IOrganizationService service =
serviceFactory.CreateOrganizationService(context.UserId);
service.Create(followup);
}
catch (Exception ex)
{
throw new InvalidPluginExecutionException(ex.Message);
}
}
}
}
}
Step 2: Signing the
assembly:
Before Registering for the
assembly, we need to sign in.
- Right-click on the project, choose Properties.
- Choose the Signing option.
- Select the Sign the assembly box.
- In the Choose a strong name key file box, choose Browse/new, and then navigate to the key file.
- You may uncheck the Key to avoid password Authentication.
Signing an assembly ensures that the consumer knows its origin and
uniquely identifies the component. It makes the physical DLL file tamper-proof.
A very important reason to sign an
assembly is so you can be sure it is your assembly.
If we put the private key, others cannot
sign an assembly with that same key.
Signing your dll makes the most sense
when you verify those signatures before loading them. This ensures
the integrity of all dll at runtime. It is a recommended security practice to
sign all binaries that you ship and validate their signatures at runtime.
If we do not sign
in to the assembly, we will get the below error:
Right Click on the Solution and
build the Solution.
Step 3: Register the Plugin. Go
to the Plugin registration tool.
Click on Create connection and
then check the Display list of available Organizations. Click on login.
It will now retrieve the Organization
you have logged in to. Enter the Organization credentials.
Click on Register >Register
New Assembly.

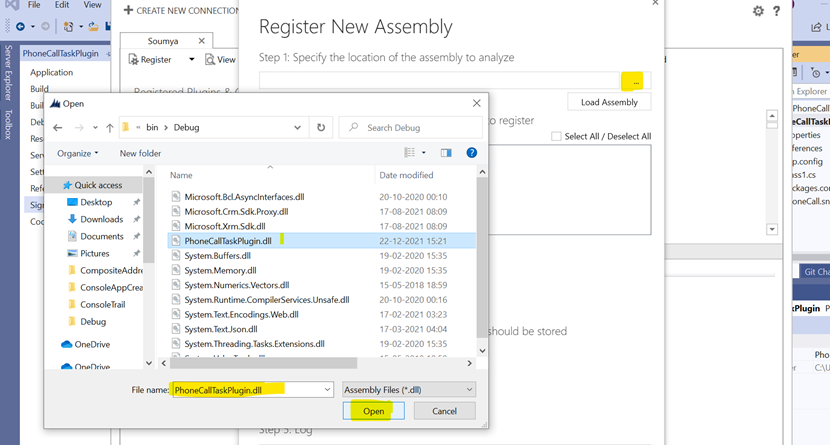

Select the DLL file from the
folder and add the register.
Load the assembly and now, click
on Register and then Select Register new Step.
Since we are creating a follow-up
task on the creation of lead, hence we will select the following:
Message: Create
Primary Entity: Lead
Event Pipeline: Post Operation
Execution Mode: Synchronous.
Click on Register new Step.
Now, check the operation from
Dynamics CRM. A follow-up task should be created on the creation of a lead
record.
Synchronous and
Asynchronous:
Synchronous plugins are
triggered straight away. So, if your plugin is triggered on the Create
message, it will run directly either on post-operation or pre-operation. The
CRM form will wait until the Synchronous plugin has finished processing before
the form reloads. Can run on both post-operation and pre-operation. This will
run only for 2 minutes and blocks users until completed.
Asynchronous plugins will be triggered sometime
later when the CRM service has enough resources. We cannot assume when this
will be triggered. Async plugins do not slow the form reloading because
it doesn’t have to wait. This will run only for 2 minutes and does not block
users from seeing the operation result. Modifications happen after operations,
so an update call is required.
Event Pipeline in Plugin:
When we run our Plugin, it
is executed based on the Even pipeline :
·
Pre-Validation:- Security checks being performed to verify the
calling or logged-on user has the correct permissions to perform the intended operation.
The Stage Value is 10.
For Example – In
the “delete” plugin. If you need any information about the child records, the
deleted plugin must be pre-validation.
·
Pre-Operation:- Execute before the main system operation. Plug-ins
registered in this stage are
executed within the database transaction.
The Stage Value is
20.
For Create message,
this operation does not allow you access to the GUID generated after the
creation of the record.
·
Core
Operation:- The main
operation of the system, such as create, update, delete, and so on. No custom
plug-ins can be registered at this stage.
The Stage Value is 30.
·
Post-Operation:- Plug-ins that are to execute after the main operation. Plug-ins
registered in this stage are executed within the database transaction.
The Stage Value is 40.
Run in User’s Context:
As we are creating a follow-up
task on the creation of the account entity, we need to select the Run in User’s
Context as a Calling user.
Suppose we select a user who
does not have the privilege to create an activity task, then the plugin will
not run-on execution.
Now, if we check the
System, Jobs. You will see the plugin failed to execute.
